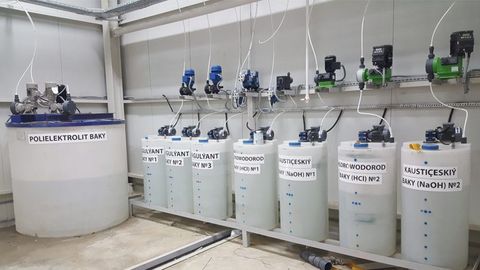

Chemical dosing systems are engineered systems used to introduce controlled quantities of chemicals into liquids or process streams.
They are widely used in water treatment, wastewater treatment, industrial processing, agriculture, chemical production, and other applications where accurate chemical addition is required.
A typical system combines a dosing pump with storage, piping, valves, instrumentation, and control equipment. Depending on the application, the system can operate manually, automatically, or through a process-control network.
What Are Chemical Dosing Systems?
A chemical dosing system delivers a predetermined quantity of a chemical into a process at a controlled rate. The objective may be pH adjustment, disinfection, coagulation, corrosion control, scale prevention, oxidation, or another chemical treatment process.
A basic system may contain:
- Chemical storage tank
- Dosing pump
- Injection point
- Piping and tubing
- Isolation valves
- Check valves
- Calibration equipment
- Flow meters
- Pressure gauges
- Level sensors
- Control panel
More advanced installations can incorporate sensors and automated controls that adjust chemical addition according to changing process conditions.
How Chemical Dosing Systems Work
The operating principle is relatively straightforward.
- Chemical is stored in a dedicated tank or container.
- The dosing pump draws chemical from the storage vessel.
- The pump meters the chemical at a specified flow rate.
- The chemical travels through dosing lines.
- An injection assembly introduces it into the process stream.
- Mixing distributes the chemical throughout the treated liquid.
- Sensors or operators monitor process conditions.
- The dosing rate is adjusted when required.
The exact configuration depends on the chemical characteristics, required dosing rate, process pressure, temperature, and application.
Main Types of Chemical Dosing Pumps
Chemical dosing pumps are available in several configurations.
Diaphragm Dosing Pumps
Diaphragm pumps use a flexible diaphragm to move and meter chemical liquids. They are widely used because the pumping mechanism can provide controlled dosing while separating the chemical from certain moving mechanical components.
They can be suitable for applications requiring accurate metering over a defined operating range.
Peristaltic Dosing Pumps
Peristaltic pumps move liquid through flexible tubing using a rotating mechanism that compresses the tube.
Potential advantages include:
- Simple fluid path
- Easy tube replacement
- Suitability for certain viscous fluids
- Reduced contamination between the pump mechanism and process liquid
They are used in water treatment, laboratory systems, chemical processing, and other applications.
Plunger Dosing Pumps
Plunger pumps use reciprocating motion to move liquid through the pump chamber. They can provide high-pressure dosing and are used in demanding industrial applications.
Material selection is particularly important when handling aggressive chemicals.
Chemical Dosing Equipment Components
A complete dosing installation requires more than a pump.
| Component | Main Function |
|---|---|
| Storage Tank | Holds process chemical |
| Dosing Pump | Meters chemical flow |
| Injection Valve | Introduces chemical into process |
| Check Valve | Helps prevent reverse flow |
| Pressure Relief Valve | Provides pressure protection |
| Flow Meter | Measures chemical flow |
| Level Sensor | Monitors tank level |
| Agitator | Keeps certain chemicals mixed |
| Control Panel | Manages system operation |
| Calibration Column | Helps verify dosing accuracy |
The components should be selected as an integrated system because chemical compatibility and operating pressure can affect the reliability of the complete installation.
Automatic Chemical Dosing Systems
Automatic chemical dosing systems use sensors, controllers, and programmed logic to regulate chemical addition.
For example, a water-treatment system may measure pH or another process parameter and adjust the dosing rate according to the measured value.
Automation can involve:
- PLC controllers
- pH sensors
- ORP sensors
- Conductivity sensors
- Flow meters
- Level transmitters
- Pressure sensors
- Variable-speed pumps
- Remote monitoring
Benefits of Automation
Automated dosing can provide:
- More consistent chemical addition
- Reduced manual intervention
- Continuous process monitoring
- Improved response to changing conditions
- Data logging
- Alarm notifications
- Better process coordination
Automation should be properly calibrated because inaccurate sensors or incorrect control parameters can lead to inappropriate dosing.
Industrial Chemical Dosing Systems
Industrial chemical dosing systems are used in processes where chemical addition must remain controlled over extended operating periods.
Applications can include:
- Water treatment
- Wastewater treatment
- Cooling-water treatment
- Boiler-water treatment
- Chemical processing
- Mining
- Food processing
- Pulp and paper production
- Oil and gas operations
- Agriculture
System capacity can range from compact units for smaller installations to large skid-mounted systems designed for continuous industrial operation.
Water Treatment Dosing Systems
Water treatment dosing systems are among the most common applications. Chemicals can be introduced at different stages depending on the treatment objective.
Examples include chemicals used for:
- Disinfection
- pH correction
- Coagulation
- Flocculation
- Scale control
- Corrosion control
- Oxidation
The dosing rate depends on factors such as water quality, flow rate, chemical concentration, treatment objective, and regulatory requirements.
Chemical Injection Systems
Chemical injection systems introduce chemicals directly into a process pipeline, tank, vessel, or treatment chamber.
An injection assembly may include:
- Injection quill
- Check valve
- Isolation valve
- Mixing point
- Pressure gauge
- Injection line
Proper injection-point placement is important. The chemical should have sufficient contact and mixing with the process stream to achieve the intended treatment effect.
Chemical Dosing Skid Systems
Chemical dosing skid systems integrate multiple components onto a common structural frame. This can simplify equipment arrangement and installation planning.
A dosing skid may include:
- Storage or day tank
- Primary dosing pump
- Standby pump
- Valves
- Piping
- Instrumentation
- Control panel
- Safety equipment
- Calibration equipment
Skid-mounted systems are particularly useful for industrial projects where equipment needs to be assembled and tested as a coordinated package before installation.
Chemical Compatibility
Chemical compatibility is one of the most important considerations in dosing equipment selection.
Different chemicals can react with or degrade materials used in:
- Pump heads
- Diaphragms
- Tubing
- Valves
- Seals
- Tanks
- Fittings
Materials may include plastics, elastomers, stainless steel, specialty alloys, or other chemically resistant materials.
Compatibility should always be verified against the specific chemical concentration, temperature, pressure, and operating conditions.
Safety Considerations
Chemical dosing systems can handle corrosive, oxidizing, toxic, or otherwise hazardous substances. Appropriate safety engineering is therefore essential.
Important considerations include:
- Secondary containment
- Leak detection
- Emergency shutoff
- Appropriate ventilation
- Chemical-resistant materials
- Pressure protection
- Clearly identified chemical lines
- Appropriate personal protective equipment
- Safe chemical storage
- Emergency response procedures
System design should follow applicable regulations and the chemical manufacturer's handling guidance.
How to Choose Chemical Dosing Equipment
Selecting chemical dosing equipment requires a detailed assessment of the process.
Determine the Required Flow Rate
The pump should accommodate the minimum, normal, and maximum required dosing rates. A suitable control range allows the system to respond to changing process conditions.
Check Operating Pressure
The dosing pump must be capable of operating against the required discharge pressure. Pressure fluctuations should also be considered.
Evaluate Chemical Properties
Review concentration, viscosity, temperature, corrosiveness, and compatibility with wetted materials.
Consider Control Requirements
Determine whether the system needs manual adjustment, automatic feedback control, remote monitoring, or integration with a larger process-control system.
Evaluate Redundancy
Critical processes may require duty and standby pumps so that chemical dosing can continue if the primary pump requires maintenance.
Maintenance of Chemical Dosing Systems
Regular maintenance helps maintain dosing accuracy and equipment reliability.
Typical activities include:
- Inspecting pump components
- Checking tubing and piping
- Examining valves
- Verifying calibration
- Inspecting tanks
- Checking sensors
- Cleaning injection points
- Reviewing alarms
- Checking for leaks
- Inspecting electrical connections
Dosing pumps should be calibrated periodically because wear, chemical exposure, tubing changes, and operating conditions can affect actual flow rates.
Common Challenges
Pump Calibration
A pump's indicated setting does not always represent the exact delivered flow under every operating condition. Calibration against actual operating conditions is therefore important.
Chemical Crystallization
Some chemicals can crystallize around injection points, valves, or tubing. Appropriate system design and maintenance can help manage this issue.
Air Locking
Air or gas accumulation in certain dosing systems can interrupt liquid delivery. Pump and piping configuration should account for this possibility.
Corrosion
Aggressive chemicals can damage unsuitable materials. Chemical compatibility should be evaluated before selecting wetted components.
Changing Process Conditions
Flow rates, temperatures, and chemical concentrations can change during operation. Automatic control systems can help the dosing process respond to these variations.
Frequently Asked Questions
What are chemical dosing systems used for?
Chemical dosing systems are used to introduce controlled quantities of chemicals into water, wastewater, and industrial process streams for purposes such as disinfection, pH adjustment, coagulation, corrosion control, and scale management.
What is a chemical dosing pump?
A chemical dosing pump is a metering pump designed to deliver a controlled quantity of chemical liquid at a specified flow rate and pressure.
How does an automatic chemical dosing system work?
An automatic system can use sensors and controllers to monitor process conditions and adjust the dosing rate according to programmed control parameters.
What factors affect chemical dosing pump selection?
Important factors include dosing rate, discharge pressure, chemical concentration, viscosity, temperature, material compatibility, control requirements, and operating environment.
Why is calibration important in chemical dosing?
Calibration verifies the actual chemical delivery rate under operating conditions. It helps ensure that the pump output corresponds with the required dosing level.
Conclusion
Chemical dosing systems provide controlled chemical addition across water treatment, wastewater treatment, industrial processing, agriculture, and many other applications. Their performance depends on the interaction between dosing pumps, tanks, valves, piping, sensors, injection equipment, and control systems.
Modern automatic chemical dosing systems can use process sensors and digital controllers to maintain more consistent treatment conditions. However, accurate calibration, appropriate material selection, chemical compatibility, pressure management, and regular maintenance remain essential.
By evaluating flow requirements, chemical characteristics, process conditions, automation needs, safety requirements, and equipment configuration, organizations can develop dosing systems that are appropriate for their specific industrial processes.
