Hydraulic press machines use hydraulic pressure to generate controlled force for forming, compressing, bending, stamping, pressing.
They are widely used in metalworking, automotive manufacturing, plastics processing, rubber production, fabrication, and general industrial manufacturing.
These machines are available in different configurations, capacities, and control systems. The appropriate hydraulic press depends on the material, required force, stroke length, working speed, tooling arrangement, production volume, and application.
What Are Hydraulic Press Machines?
Hydraulic press machines are mechanical systems that use pressurized hydraulic fluid to generate force through one or more cylinders.
The hydraulic system typically consists of:
- Hydraulic pump
- Hydraulic cylinder
- Reservoir
- Control valves
- Pressure-control components
- Hydraulic lines
- Electric motor
- Press frame
- Ram
- Worktable
- Tooling
Hydraulic pressure is converted into linear mechanical force at the ram.
How Do Hydraulic Press Machines Work?
The operating principle is based on hydraulic pressure transmission.
1. Hydraulic Fluid Storage
Hydraulic fluid is stored in a reservoir.
2. Pump Operation
An electric motor drives the hydraulic pump, which moves fluid through the hydraulic circuit.
3. Pressure Generation
Control valves direct pressurized fluid toward the hydraulic cylinder.
4. Cylinder Movement
Pressure acting on the cylinder piston produces linear movement.
5. Ram Force
The cylinder moves the ram toward the workpiece and applies the required force.
6. Pressure Release and Return
After the pressing operation, hydraulic flow is redirected to return the ram to its starting position.
The sequence can be controlled manually or through an automated control system.
Types of Hydraulic Press Machines
Different hydraulic press configurations are designed for different manufacturing requirements.

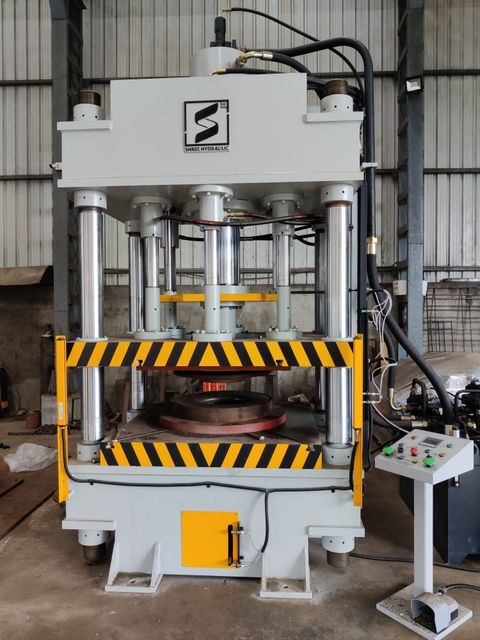

Four-Column Hydraulic Press
Four-column presses use four vertical columns to guide and support the moving platen.
They provide a large working area and are commonly used for:
- Compression molding
- Metal forming
- Rubber processing
- Plastic molding
- Deep drawing
C-Frame Hydraulic Press
C-frame presses have an open-sided frame that provides convenient access to the working area.
They are suitable for:
- Punching
- Bending
- Forming
- Assembly operations
- General fabrication
H-Frame Hydraulic Press
H-frame presses use a rigid frame with a horizontal bed and vertical supports.
They are widely used in workshops and industrial applications involving pressing, straightening, forming, and assembly.
Bench Hydraulic Press
Bench presses are compact machines designed for smaller-scale pressing applications.
They can be used for:
- Bearing installation
- Component assembly
- Small forming operations
- Maintenance work
Deep Drawing Hydraulic Press
Deep drawing presses form sheet metal into cup-shaped or other deep geometries.
They require precise control of force, stroke, tooling, and material flow.
Hydraulic Stamping Press
Hydraulic stamping presses apply controlled force to form or shape sheet-metal components.
Their programmable stroke and pressure characteristics can be useful for specialized forming processes.
Hydraulic Compression Press
Compression presses apply force to materials held within a mold or tooling system.
They are commonly used for suitable:
- Rubber compounds
- Composite materials
- Plastics
- Laminates
Major Components of Hydraulic Press Machines
| Component | Primary Function |
|---|---|
| Press Frame | Supports the machine structure |
| Hydraulic Cylinder | Converts fluid pressure into mechanical force |
| Hydraulic Pump | Circulates pressurized fluid |
| Reservoir | Stores hydraulic fluid |
| Control Valves | Direct and regulate fluid flow |
| Pressure Valve | Controls system pressure |
| Ram | Applies force to the workpiece |
| Worktable | Supports tooling and workpieces |
| Guide System | Maintains ram alignment |
| Electric Motor | Drives the hydraulic pump |
| Hoses and Pipes | Transport hydraulic fluid |
| Control Panel | Controls machine operation |
| Safety System | Helps protect operators |
Component dimensions and configurations vary according to press capacity and application.
Hydraulic Press Force
Press force is one of the most important machine specifications.
The theoretical cylinder force can be approximated using:
Force = Pressure × Effective Piston Area
For example, increasing hydraulic pressure or cylinder area can increase the available pressing force.
Actual machine performance also depends on mechanical efficiency, hydraulic losses, cylinder configuration, and operating conditions.
Important Hydraulic Press Specifications
Press Capacity
Press capacity indicates the maximum force the machine is designed to generate.
Industrial machines can range from relatively small presses to very high-capacity systems.
Stroke Length
Stroke length determines the distance the ram can travel during operation.
The required stroke depends on workpiece dimensions, tooling, and forming depth.
Working Speed
Hydraulic presses may have different approach, pressing, and return speeds.
Variable-speed control can help match machine movement to the production process.
Table Size
The worktable must accommodate the required tooling and workpiece dimensions.
Daylight
Daylight refers to the available space between the ram and the working surface when the ram is in its specified position.
It is important when determining whether tooling and workpieces can fit within the press.
Pressure Rating
The hydraulic system's pressure rating determines the operating conditions under which the machine can generate its specified force.
Applications of Hydraulic Press Machines
Metal Forming
Hydraulic presses are widely used for forming sheet and structural metal components.
Applications include:
- Bending
- Punching
- Deep drawing
- Straightening
- Forming
- Embossing
Automotive Manufacturing
Hydraulic presses are used to manufacture and form various automotive components.
They can support operations involving:
- Body panels
- Structural components
- Bushings
- Bearings
- Composite parts
Plastic and Rubber Processing
Compression molding systems use controlled pressure and temperature to form suitable polymer materials.
Composite Manufacturing
Hydraulic presses can apply controlled pressure during composite forming and consolidation.
Powder Compaction
Presses can compact suitable metal, ceramic, or other powders into predefined shapes before subsequent processing.
Assembly and Maintenance
Hydraulic presses are frequently used for:
- Bearing installation
- Bushing removal
- Shaft straightening
- Component assembly
- Part separation
Hydraulic Press Automation
Modern hydraulic press machines can incorporate automated controls for improved process consistency.
Common technologies include:
- PLC controls
- HMI interfaces
- Pressure sensors
- Position sensors
- Servo-hydraulic systems
- Programmable stroke control
- Automatic feeding
- Robotic loading
- Automated unloading
- Data logging
PLC Control
A programmable logic controller can coordinate pressure, stroke, timing, and sequencing.
Position Monitoring
Sensors can monitor ram position during the pressing cycle.
Pressure Monitoring
Pressure sensors help maintain predefined hydraulic conditions and can identify abnormal operating states.
Robotic Integration
Robotic systems can load and unload components from automated press lines.
Hydraulic Press Safety
Hydraulic presses can generate substantial mechanical forces, making machine safety an important consideration.
Common safety features include:
- Emergency-stop controls
- Two-hand controls
- Light curtains
- Safety interlocks
- Guarding
- Pressure protection
- Overload protection
- Ram-position monitoring
- Safe access systems
Operators should follow established machine operating procedures and lockout/tagout practices during maintenance.
Common Hydraulic Press Problems
Hydraulic Leakage
Fluid leakage can result from damaged seals, fittings, hoses, or hydraulic components.
Pressure Loss
Low system pressure may be associated with pump problems, valve issues, leaks, worn components, or incorrect settings.
Slow Ram Movement
Reduced hydraulic flow, pump wear, restricted lines, or incorrect control settings can affect ram speed.
Ram Misalignment
Guide wear, uneven loading, tooling problems, or structural issues can contribute to misalignment.
Excessive Noise
Unusual noise can indicate hydraulic aeration, pump problems, mechanical wear, or insufficient lubrication.
Oil Overheating
Excessive heat can result from continuous high-load operation, restricted cooling, incorrect fluid conditions, or hydraulic inefficiencies.
Maintenance of Hydraulic Press Machines
Regular maintenance helps preserve machine performance and hydraulic-system reliability.
Typical maintenance activities include:
- Checking hydraulic fluid levels
- Inspecting hydraulic hoses
- Checking seals and fittings
- Inspecting cylinders
- Monitoring hydraulic pressure
- Checking pump condition
- Inspecting valves
- Cleaning filters
- Checking electrical connections
- Inspecting guides
- Checking frame condition
- Inspecting tooling
- Testing safety devices
Hydraulic fluid and filters should be maintained according to equipment specifications and operating conditions.
Hydraulic Press vs Mechanical Press
| Factor | Hydraulic Press | Mechanical Press |
|---|---|---|
| Force Generation | Hydraulic pressure | Mechanical drive |
| Force Control | Highly adjustable | Linked to mechanical cycle |
| Stroke Control | Flexible | Often more fixed |
| Overload Protection | Hydraulic systems can provide protection | Depends on machine design |
| Speed | Generally slower for many operations | Often faster |
| Deep Drawing | Well suited | Application dependent |
| Variable Force | Highly controllable | More limited |
The appropriate press depends on the forming process, production requirements, material, tooling, and required control characteristics.
How to Select Hydraulic Press Machines
Selecting a hydraulic press requires a detailed evaluation of the intended operation.
Consider:
- Required press force
- Material type
- Workpiece dimensions
- Required stroke
- Working speed
- Table dimensions
- Daylight
- Tooling requirements
- Production volume
- Pressure requirements
- Temperature requirements
- Automation level
- Available floor space
- Safety requirements
- Maintenance access
The press should provide adequate capacity for the application without being unnecessarily oversized.
How to Evaluate Hydraulic Press Manufacturers
When evaluating hydraulic press manufacturers, examine their engineering and machine-design capabilities.
Important factors include:
- Press-frame construction
- Hydraulic system design
- Cylinder configuration
- Pump and valve selection
- Control technology
- Automation capabilities
- Tooling compatibility
- Safety systems
- Machine testing
- Technical documentation
- Maintenance requirements
- Customization capabilities
Manufacturers should be able to match the press configuration with the required force, stroke, workpiece dimensions, tooling, and production process.
Energy Efficiency in Hydraulic Press Systems
Hydraulic systems can be designed to reduce unnecessary energy consumption.
Potential approaches include:
- Variable-speed pump drives
- Efficient hydraulic circuits
- Servo-hydraulic systems
- Optimized pressure settings
- Reduced idle operation
- Improved hydraulic-fluid management
- Efficient cooling systems
Energy requirements depend on machine capacity, cycle time, operating pressure, load profile, and control strategy.
Frequently Asked Questions
What are hydraulic press machines used for?
Hydraulic press machines are used for pressing, forming, bending, stamping, deep drawing, compression molding, straightening, powder compaction, and component assembly.
What determines hydraulic press capacity?
Press capacity primarily depends on the hydraulic pressure and effective piston area, along with the machine's structural and hydraulic design.
What are the main types of hydraulic presses?
Common configurations include four-column, C-frame, H-frame, bench, deep drawing, stamping, and compression presses.
How do I select a hydraulic press?
Consider required force, stroke, table dimensions, daylight, material, workpiece size, tooling, speed, production volume, automation, safety, and installation requirements.
How can hydraulic press performance be maintained?
Regular hydraulic-fluid checks, filter maintenance, hose and seal inspections, pressure monitoring, mechanical inspections, and safety-system testing can help maintain reliable operation.
Conclusion
Hydraulic press machines use controlled hydraulic pressure to generate substantial mechanical force for forming, pressing, bending, stamping, molding, straightening, and assembly operations. Their flexible force and stroke control makes them suitable for a broad range of industrial applications.
Four-column, C-frame, H-frame, deep drawing, stamping, compression, and other configurations can be selected according to workpiece dimensions, tooling requirements, material properties, and production conditions. Important specifications include press capacity, stroke length, working speed, table size, daylight, and hydraulic pressure.
Modern hydraulic presses can incorporate PLC controls, sensors, programmable stroke control, automated feeding, robotic handling, and data monitoring. Proper machine selection, safety procedures, preventive maintenance, and hydraulic-system inspection are essential for dependable long-term operation.
