An Articulated Arm CMM is a portable dimensional measurement system designed to capture the position, size, shape, and geometry of physical components.
Unlike fixed Cartesian coordinate measuring machines, an Articulated Arm CMM Machine uses connected rotary joints and measurement encoders to determine the position of a probe or scanner in three-dimensional space. This design makes a Portable Articulated Arm CMM useful for inspecting large, complex, or difficult-to-move components in manufacturing environments.
Accuracy, however, depends on more than the measuring arm itself. Temperature, calibration, probe selection, operator technique, component movement, surface condition, scanner settings, and measurement strategy can all influence results. Understanding these factors helps readers interpret measurements more carefully and understand why the same component may produce different results under different conditions.
Context
What Is an Articulated Arm CMM?
An Articulated Arm CMM consists of multiple arm segments connected through rotary joints. Each joint contains measurement technology that tracks angular movement, allowing software to calculate the position of the probe or scanning device in three-dimensional space.
An Articulated Arm CMM System can normally be configured with a tactile probe, laser scanner, or other measurement accessory. A tactile configuration records individual points by physically contacting a component, while an optical configuration captures many surface points without direct contact.
A Portable CMM Arm can be positioned close to a component instead of requiring the component to be transported to a dedicated measurement room. This makes the technology relevant to applications involving vehicle bodies, aircraft structures, molds, castings, fabricated parts, and large assemblies.
How Articulated Measuring Arms Work
The measurement process begins when the operator establishes a reference system. The probe or scanner is then moved around the component while the system records spatial coordinates.
For a 3D Measuring Arm CMM, software converts these coordinates into geometric information such as:
- Distances between features
- Hole locations and diameters
- Angles and alignments
- Surface profiles
- Flatness and form
- Geometric relationships
- Comparison with CAD models
A 3D Articulated Arm CMM can therefore be used for inspection tasks that require measurements across several orientations.
Why Accuracy Can Vary
A High Precision Articulated CMM is still affected by its operating environment. Measurement accuracy represents the combined effect of the machine, calibration, environment, component, measurement method, and software calculations.
This means a measurement result should not automatically be interpreted as being determined only by the nominal accuracy specification of the equipment.
Importance
Why Measurement Accuracy Matters
Measurement data can influence decisions about whether a manufactured component conforms to its design requirements. Small dimensional differences may affect assembly alignment, fit, movement, sealing, or the relationship between connected components.
An Industrial Articulated Arm CMM is particularly useful where measurements need to be performed directly around a production area. Portable measurement can reduce the need to reposition large components and can provide dimensional information closer to where manufacturing activities occur.
Main Factors That Influence Accuracy
Several conditions can affect an Articulating Arm CMM during measurement.
Temperature: Materials expand and contract as temperature changes. The arm itself can also experience thermal changes. A component measured in a significantly different environment from its calibration conditions may produce different dimensional results.
Calibration: Calibration establishes the relationship between the machine's physical movement and its measurement output. An improperly calibrated system can introduce systematic measurement errors.
Probe condition: A damaged, contaminated, incorrectly mounted, or unsuitable probe can affect contact measurements.

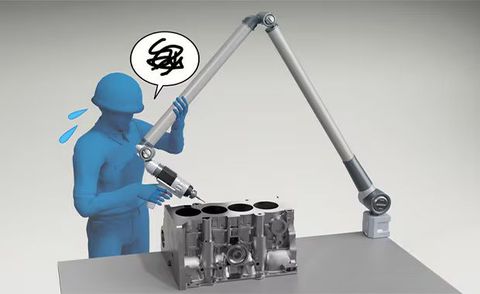

Operator technique: The angle and direction of probe contact can influence results. Excessive force may also cause movement or deformation of some components.
Component stability: A part must remain stable during measurement. Movement caused by vibration, insufficient support, or handling can affect recorded coordinates.
Surface condition: Dirt, oil, burrs, coatings, rough surfaces, and reflective materials may influence contact or optical measurements.
Scanner characteristics: A Laser Scanner Articulated Arm CMM depends on optical conditions, scanner configuration, surface characteristics, and appropriate data-processing settings.
Accuracy Factors at a Glance
| Factor | Potential Influence | Typical Control |
|---|---|---|
| Temperature | Dimensional variation | Stable measurement environment |
| Calibration | Systematic measurement error | Scheduled verification |
| Probe | Contact measurement variation | Correct probe setup |
| Operator technique | Point-selection variation | Consistent measurement method |
| Component movement | Coordinate shifts | Stable fixturing |
| Surface condition | Point or scan quality | Clean measurement areas |
| Scanner settings | Point-cloud variation | Appropriate scanning parameters |
| Software alignment | Different inspection results | Consistent reference strategy |
Calibration and Verification
A Precision Measuring Arm CMM requires appropriate calibration and periodic performance verification. Calibration should be distinguished from routine measurement checks. Calibration establishes measurement characteristics, while verification helps determine whether the system continues to perform within the applicable requirements.
ISO 10360-12 specifically addresses acceptance and reverification testing for articulated arm coordinate measurement machines. It covers articulated arms using tactile probes and can also address optical distance sensors such as laser line scanners.
Recent Updates
Greater Integration of Scanning
From 2024 through 2026, the broader dimensional metrology field has continued moving toward combining tactile measurement with optical scanning and digital inspection workflows. An Articulated Arm 3D Scanner can collect dense surface information, while a tactile probe can be used for selected geometric features.
This combination can reduce the need to use separate measurement setups for different inspection tasks. However, scanner data still requires suitable alignment, filtering, surface preparation, and interpretation.
Digital Inspection Workflows
Modern Articulated Arm CMM Metrology Systems increasingly connect measurement hardware with inspection software, CAD comparison, point-cloud processing, and digital reporting. This supports workflows in which measured geometry is compared against nominal CAD geometry.
Automated Articulated Arm CMM configurations can also incorporate programmed measurement sequences. Automation can improve repeatability when the same inspection procedure is performed repeatedly, although the underlying setup and environmental conditions still matter.
Updated Metrology Standards
The ISO 10360 family remains an important reference for evaluating coordinate measurement performance. ISO 10360-5:2020, for example, addresses acceptance and periodic reverification for CMMs using contacting probing systems, including systems capable of scanning.
Recent standards activity has also expanded terminology and specification frameworks within coordinate metrology. ISO 10360-102:2026 establishes a grammar of symbols for metrological characteristics and their specifications within the ISO 10360 series.
These developments reflect a broader emphasis on clearly defining measurement characteristics and communicating them consistently.
Laws or Policies
Standards Relevant in India
In India, dimensional measurement practices can involve Indian Standards developed or adopted through the Bureau of Indian Standards. For coordinate measurement, IS 15635 provides Indian counterparts to several parts of the ISO 10360 series.
IS 15635 Part 12 corresponds to ISO 10360-12 and addresses acceptance and reverification tests for articulated arm coordinate measurement machines. Other parts address contacting probes, optical sensors, multiple probing systems, and related coordinate measurement applications.
These standards are important technical references, but their applicability depends on the measurement application, contractual requirements, industry sector, and applicable regulatory framework.
Measurement Documentation
Organizations using an Articulated Arm Inspection System may maintain documentation covering:
- Equipment identification
- Calibration status
- Verification results
- Measurement procedures
- Environmental conditions
- Probe or scanner configuration
- Inspection results
- Reference geometry
- Software version and inspection settings
For regulated industries, additional sector-specific requirements may apply. Aerospace and automotive organizations can also have internal quality procedures that go beyond general dimensional measurement standards.
Tools and Resources
Measurement Software
Inspection software is an important part of an Articulated Arm CMM System. Depending on the configuration, software can support point measurement, scanning, CAD comparison, geometric analysis, reporting, and inspection planning.
A CMM Arm 3D Scanner typically produces point-cloud data that must be processed into useful geometric information. Filtering and alignment settings should be applied consistently because different processing choices can influence the resulting measurements.
Environmental Monitoring
Temperature monitoring tools can help identify environmental changes during dimensional inspection. For precision work, recording the measurement environment alongside inspection results can provide useful context when reviewing variations.
Calibration Artifacts
Reference artifacts and calibrated test lengths can be used for performance verification. The appropriate artifact depends on the measurement system and the applicable testing procedure.
Manufacturer Documentation
Documentation for an Articulated Arm CMM Manufacturer or Articulated Arm CMM Equipment Manufacturer normally contains specifications for measurement volume, probe compatibility, scanner configuration, operating conditions, calibration procedures, and system limitations.
For organizations developing a Custom Articulated Arm CMM configuration, documentation should clearly define the measurement requirements and the equipment configuration before inspection procedures are established.
FAQs
What affects the accuracy of an Articulated Arm CMM?
Temperature, calibration condition, probe setup, operator technique, component stability, surface condition, scanner configuration, and software processing can all influence measurement results.
How does a Portable Articulated Arm CMM maintain accuracy?
A Portable Articulated Arm CMM uses joint encoders and calibration data to determine the position of its measurement device. Accuracy also depends on correct setup, environmental conditions, verification, and appropriate measurement procedures.
Is an Articulated Arm 3D Scanner different from a tactile CMM probe?
Yes. A tactile probe records measurements through physical contact with selected points, while an Articulated Arm 3D Scanner captures surface information optically. Some systems support both approaches.
What is an Articulated Arm CMM used for?
An Articulated Arm CMM can be used for dimensional inspection, reverse engineering, CAD comparison, alignment, surface measurement, assembly verification, and geometric analysis across manufacturing applications.
Does automation eliminate measurement errors?
No. Articulated Arm CMM Automation can improve process consistency, but environmental changes, calibration condition, fixture movement, component properties, scanner settings, and software configuration can still influence results.
Conclusion
An Articulated Arm CMM combines portable measurement capability with three-dimensional coordinate tracking for inspection and dimensional analysis. Measurement accuracy depends on the interaction between equipment condition, calibration, environment, component stability, measurement technique, and software processing. Recent developments have increased the integration of tactile probes, optical scanning, digital inspection, and automated workflows. Understanding these factors provides a clearer basis for interpreting measurement results across manufacturing and inspection applications.
